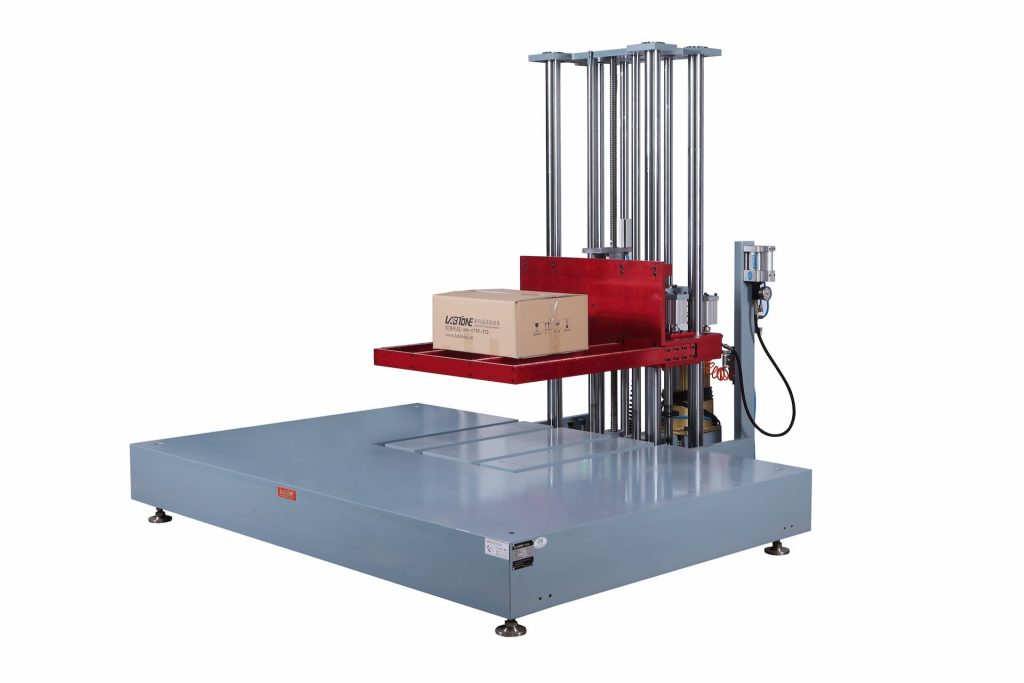

For large packaging with high mass, the vertical drop height during transport will be low and therefore they need drop test with relatively low drop height. Zero Height Drop Tester is mainly used for drop test of big package. It uses an E-shaped fork as a bracket that can move downward quickly and the specimen is placed in balance according to test requirement (surface, edge or corner drop test).
Accurate drop posture (edge, corner, face) ISTA/ASTM D5276 ISO228 GB/T 4857.23-2022
The Hydraulic Cushion and High Pressure Brake mechanism prevent rebound of fork drop platen and noise when impact.
The drop fork is driven down by the energy stored in the cylinder, and the braking mechanism is released instantly, the drop fork will be separated from the specimen at the acceleration of more than 1g, thus ensuring free drop of the specimen.
The man-machine interface is simple for operation, easy for learning and convenient for setting.
System Model | DT020 | DT030 | DT050 |
Drop Height(mm) | 0~1200 | 0~1200 | 0~1200 |
Max. Payload(kg) | 200 | 300 | 500 |
Max. Specimen Size(mm) | 1700*1500*1200 | 1900*1500*1200 | 1900*1500*1200 |
Drop Model | Free Fall Drop | ||
Machine Size(mm) | 2100*1700*2800 | 2100*1700*2800 | 2100*1700*2800 |
Machine Weight(kg) | 2350 | 2500 | 3200 |
Power/Air Supply | 3phase AC380V 50Hz Compressed Air 0.5~0.7Mpa |
